Integration Guide for OptimalIDM



Introduction

This guide provides information on how to:

• Set up Beyond Identity as a trusted IDP  for your OptimalIDM environment.
• Set up Beyond Identity Admin console as a service provider in Optimall IDM.
• Set up SCIM user provisioning of members of a specific group in Optimal IDM.



Prerequisites

Ensure that you have the following:



1. A OptimalIDM cloud version with Gold plan.
2. A OptimalIDM account with “Superadmin” privileges.



Beyond Identity Configuration

Information to provide to the Beyond Identity Field Team:



Information you will receive from the Beyond Identity Field Team

OptimalIDM Configuration

Step 1: Setup Beyond Identity as a SAML IDP

This requires the following

• Setup SAML connection in BI
• Setup SAML IDP in OptimalIDM
• Setup Authentication Policy in OptimalIDM to use SAML IDP

Step 1.1: Setup SAML connection in BI

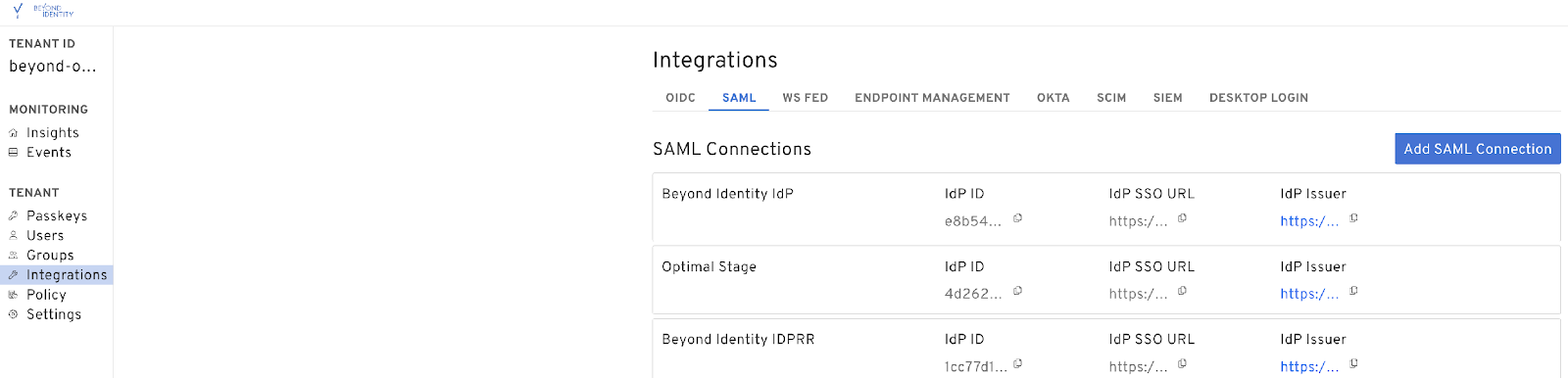

1. Access BI admin console as a superadmin. Navigate to Integrations 🡺 SAML. Click “ADD SAML Connection”

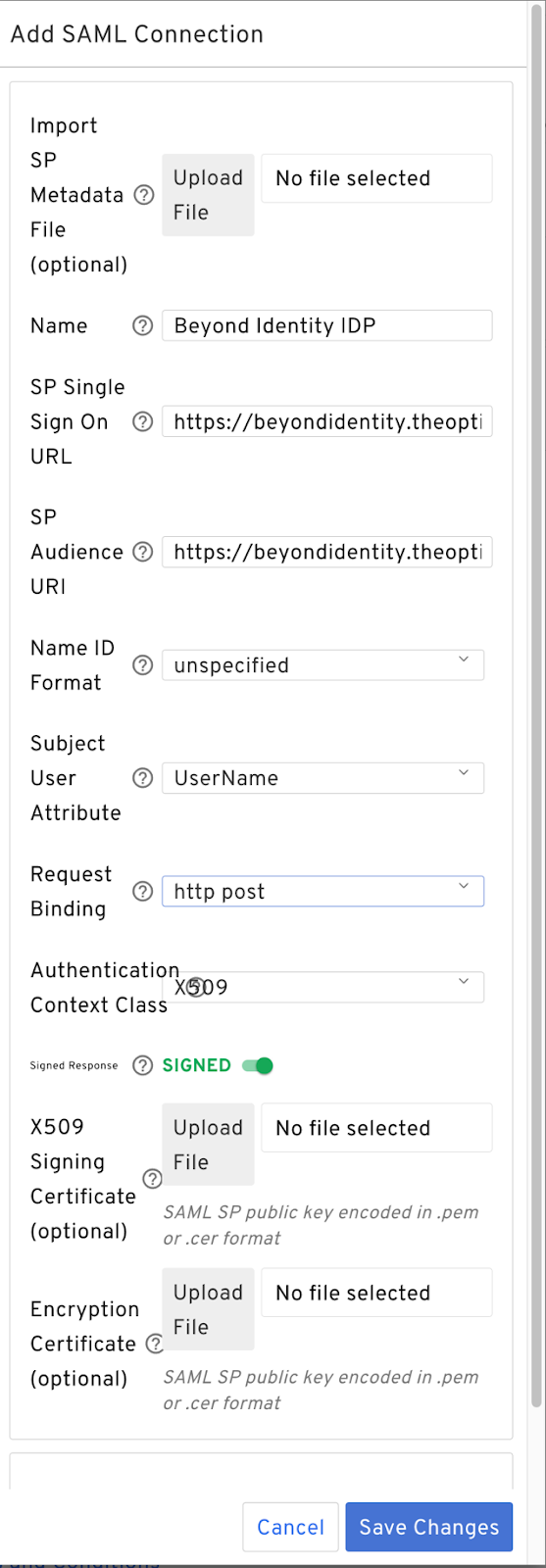

2. In “Add SAML Connection” screen

• Type in a Name, for example Beyond Identity IdP
• Type “https://[your_tenant_id].theoptimalcloud.com/v5.0/saml2/” as SP Single Sign On URL
• Type “https://[your_tenant_id].theoptimalcloud.com/v5.0” as SP Audience URI
• Type “Email” as Subject User Attribute
• Choose “http post” as Request Binding
• Click “Save Changes”

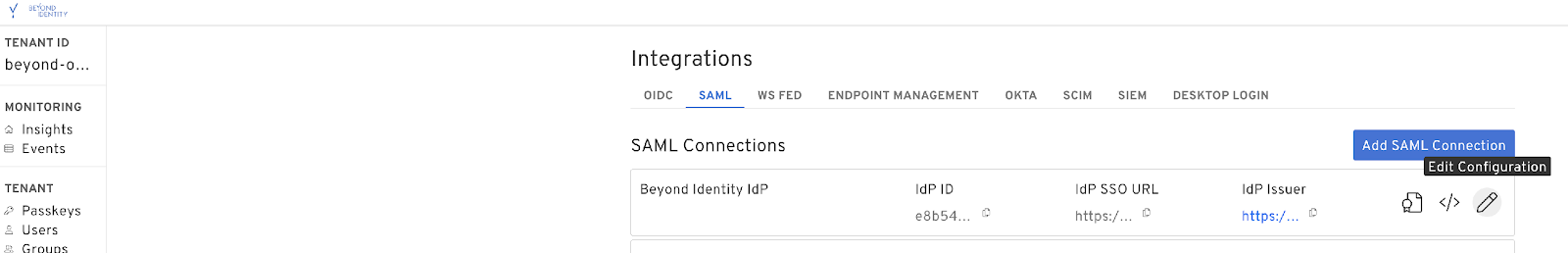

• Copy IDP ID  in the next screen. The metadata URL that is used to configure SAML IDP in optimalIDM will be https://auth.byndid.com/saml/v0/IDP_ID/sso/metadata.xml





Step 1.2: Setup SAML IDP in OptimalIDM

1. Login to your optimalIDM tenant as a tenant admin. Click on “Identity Providers” tab

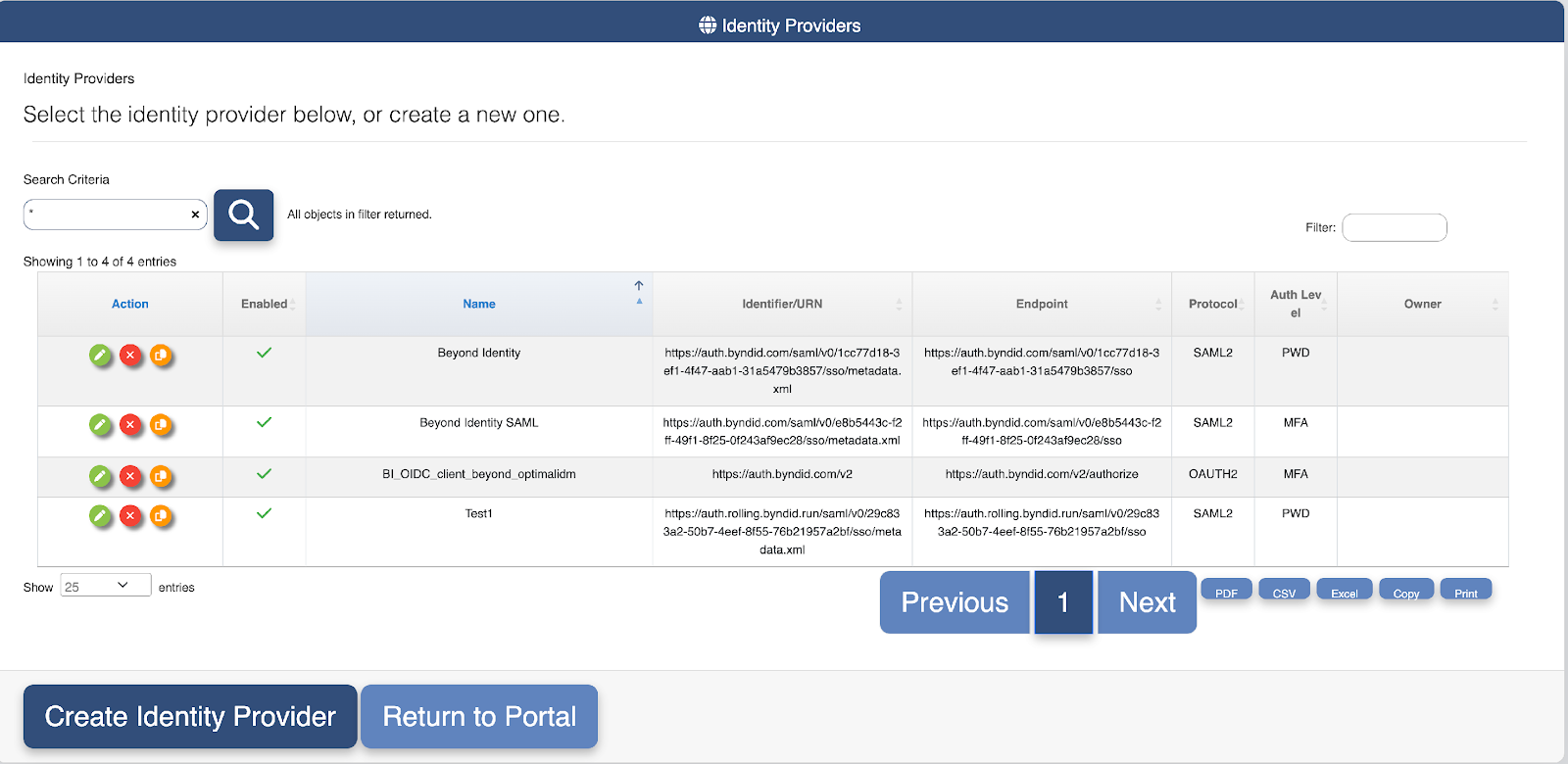

2. In “Identity Providers” screen, click “Create Identity Provider”

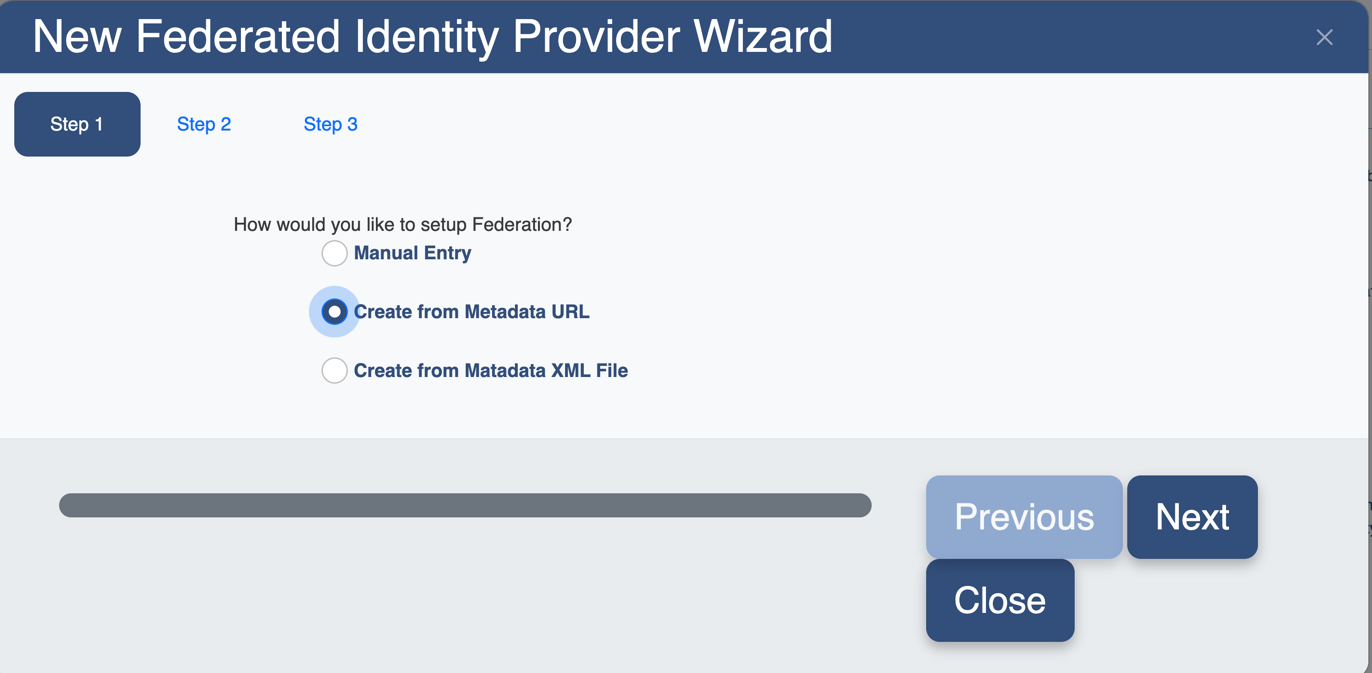

3. In “New Federated Identity Provider Wizard” screen, under “Step 1”, select “Create from Metadata URL” and click “Next”

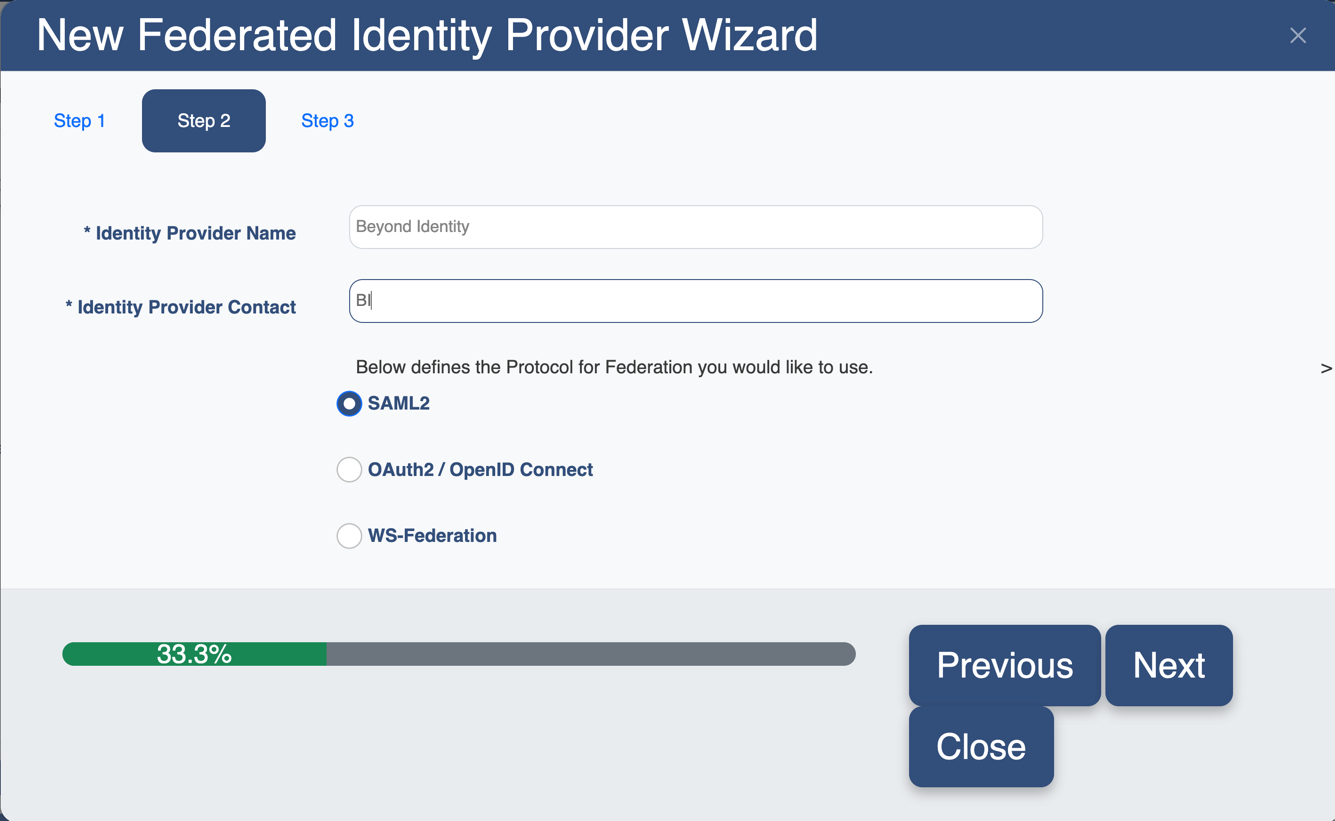

4. In “New Federated Identity Provider Wizard” screen, under “Step 2”

• Type in an Identity Provider Name for example “Beyond Identity”
• Type in an Identity Provider Contact
• Select SAML2 as the protocol
• Click “Next”

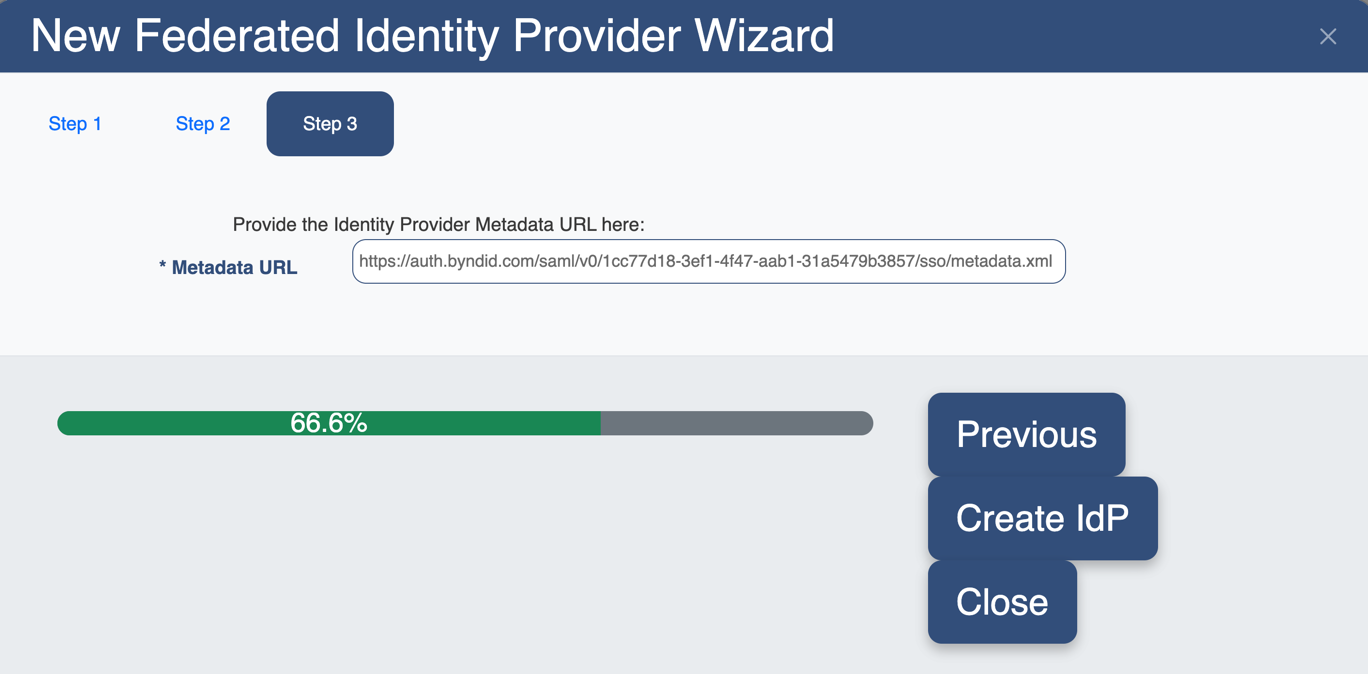

5. In “New Federated Identity Provider Wizard” screen, under “Step 3”

• Type in the Metadata URL from 1.1.b
• Click “Create IdP”
• This completes setup of BI as the SAML IDP

• Note down the Identifier/URN of the IDP. This will be used in the authentication policy





Step 1.3: Setup Authentication Policy in OptimalIDM to use SAML IDP

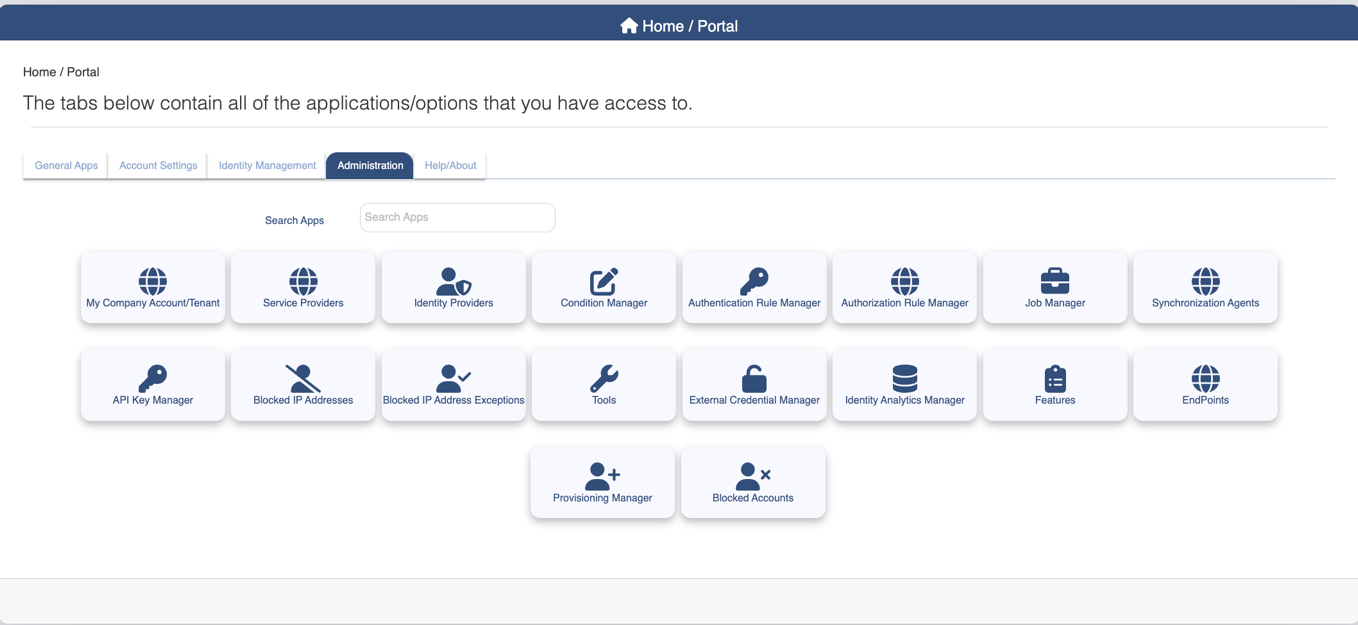

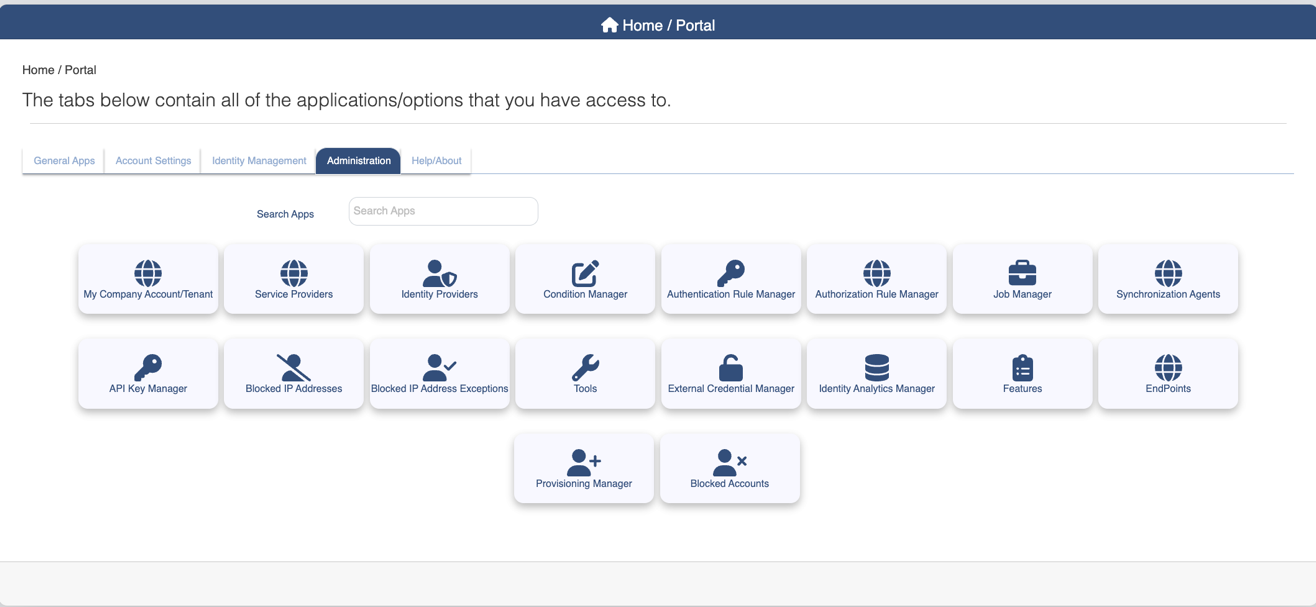

1. Login to your optimalIDM tenant as a tenant admin. Click on “Administration” tab. Click “Authentication Rule Manager”





2. Login to your optimalIDM tenant as a tenant admin. Click on “Administration” tab.
3. Click “Authentication Rule Manager”.

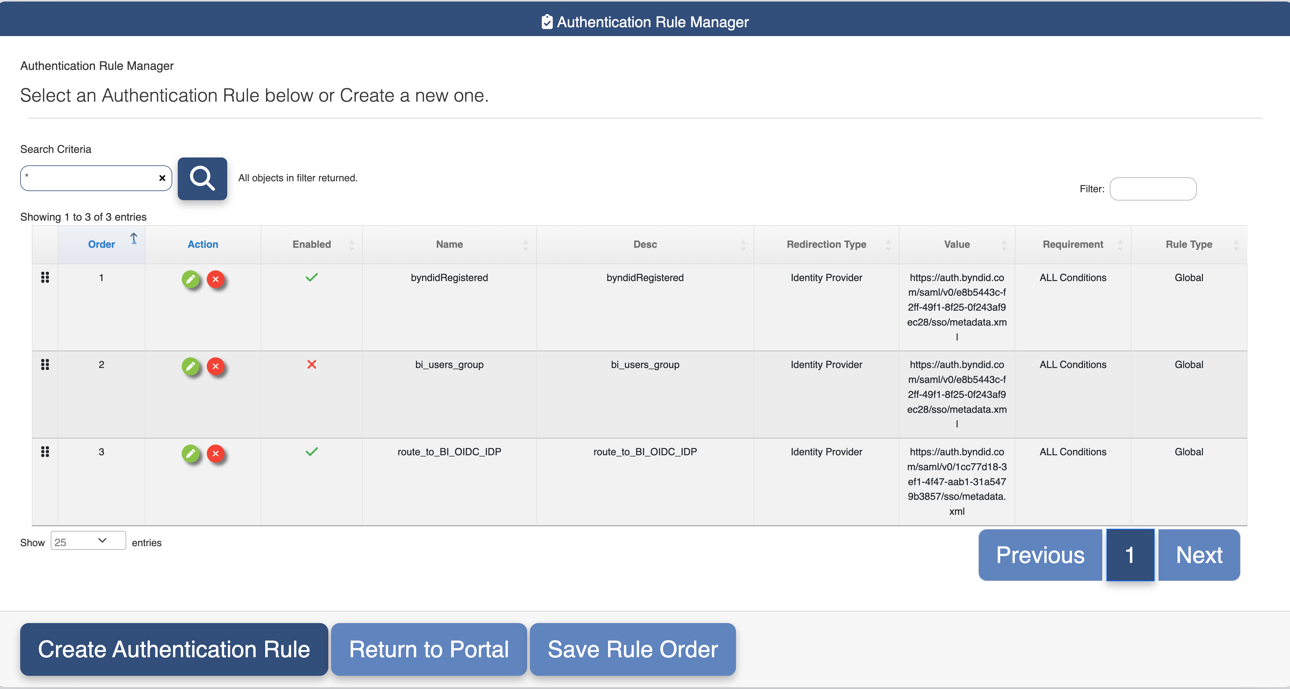

4. In “Authentication Rule Manager” screen, click “Create Authentication Rule”

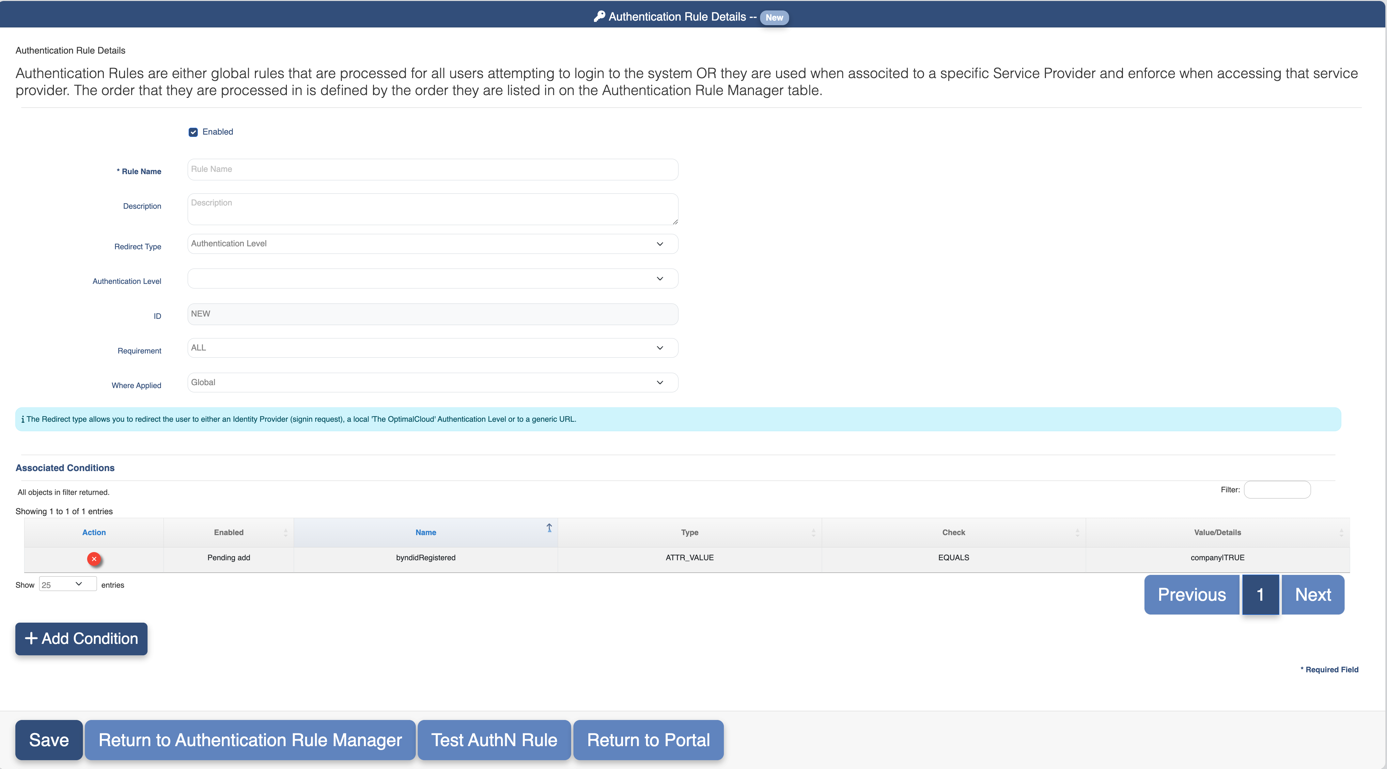

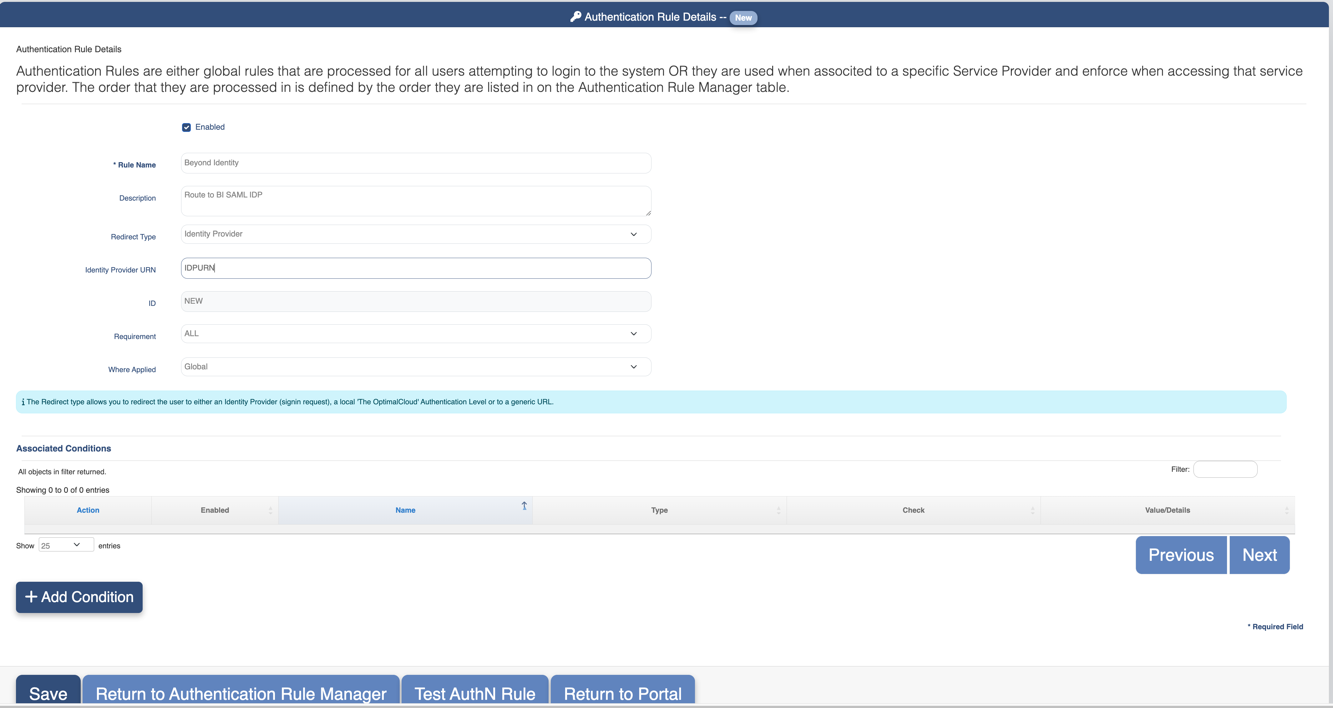

5. In “Authentication Rule Details” screen

• Select “Enabled”
• Type in a Rule Name and description
• Choose “Identity Provider” in “Redirect Type” drop down
• Type in the IDP URN noted in section 1.2.e
• Click “Add Condition”

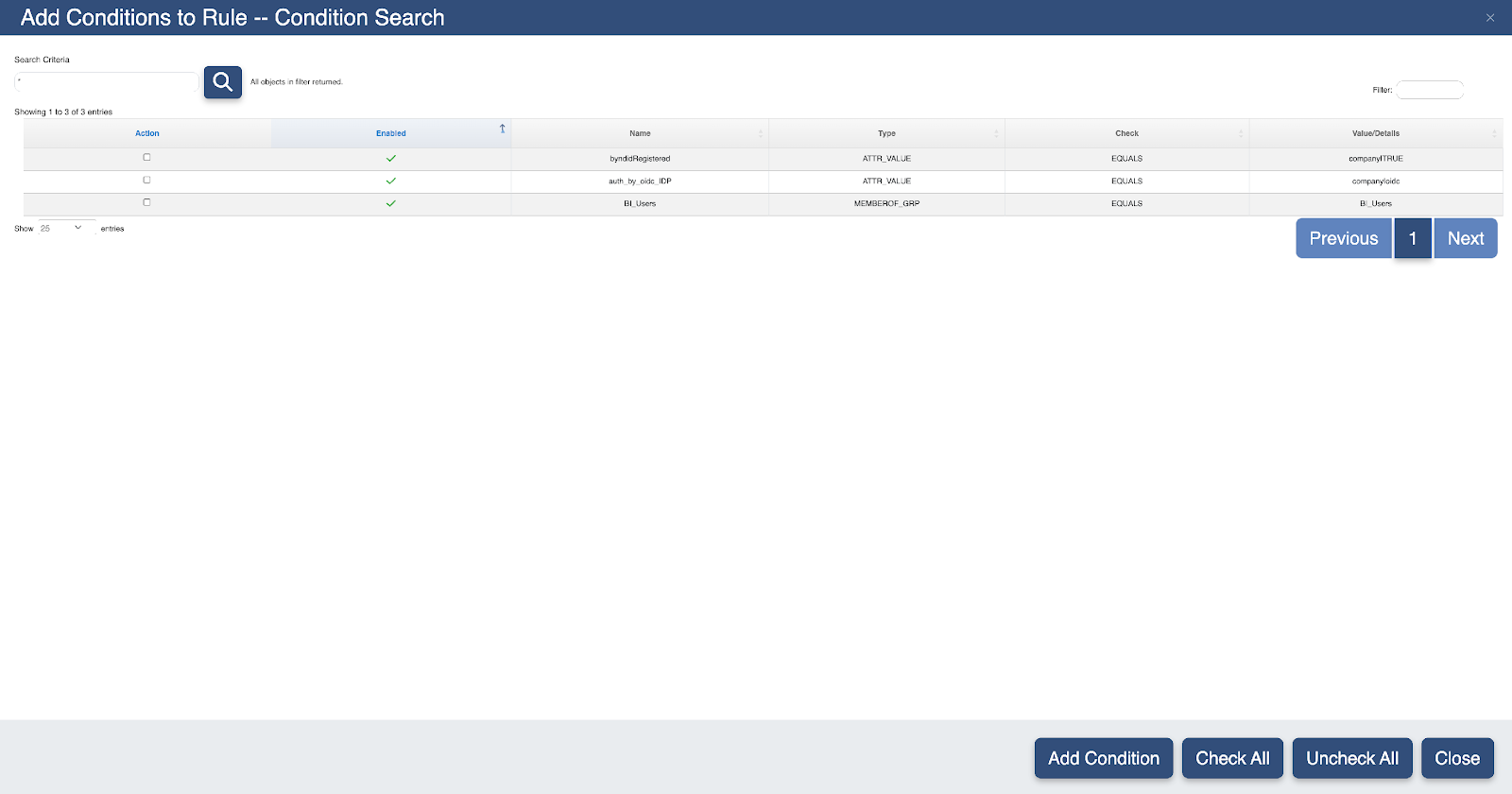

• In “Add Conditions to Rule” screen, select the condition and click “Add Condition”
• In the next screen, click “Save”







When users who match the condition login to OptimalIDM tenant, they will be routed to BI SAML IDP

Step 2: Setup Beyond Identity Admin Console Application in OptimalIDM

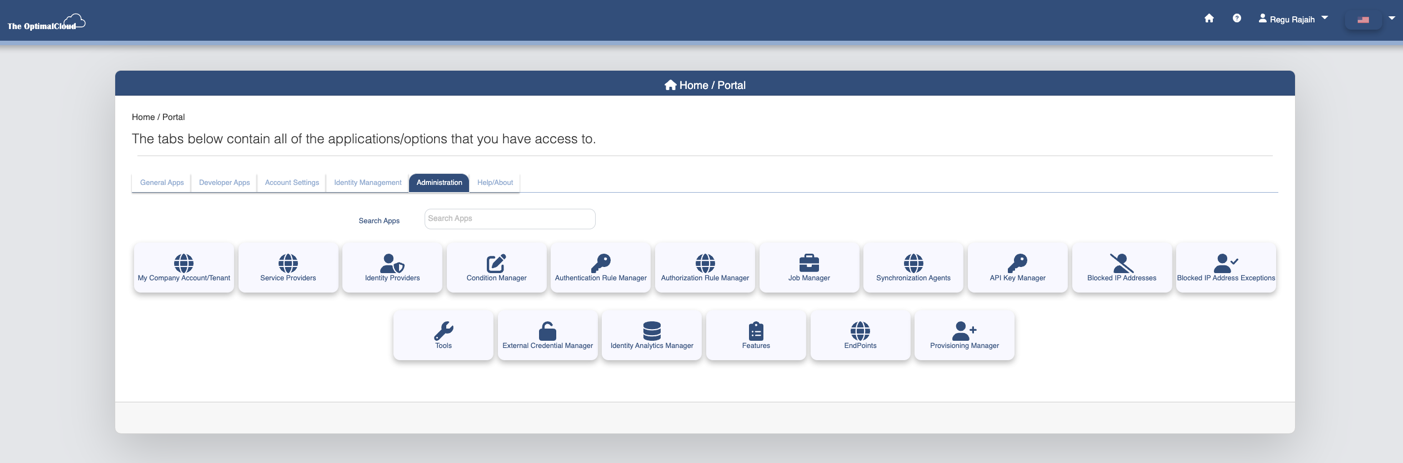

1. Login to your optimalIDM tenant as a tenant admin. Click on “Administration” tab and then click on “service providers” tab

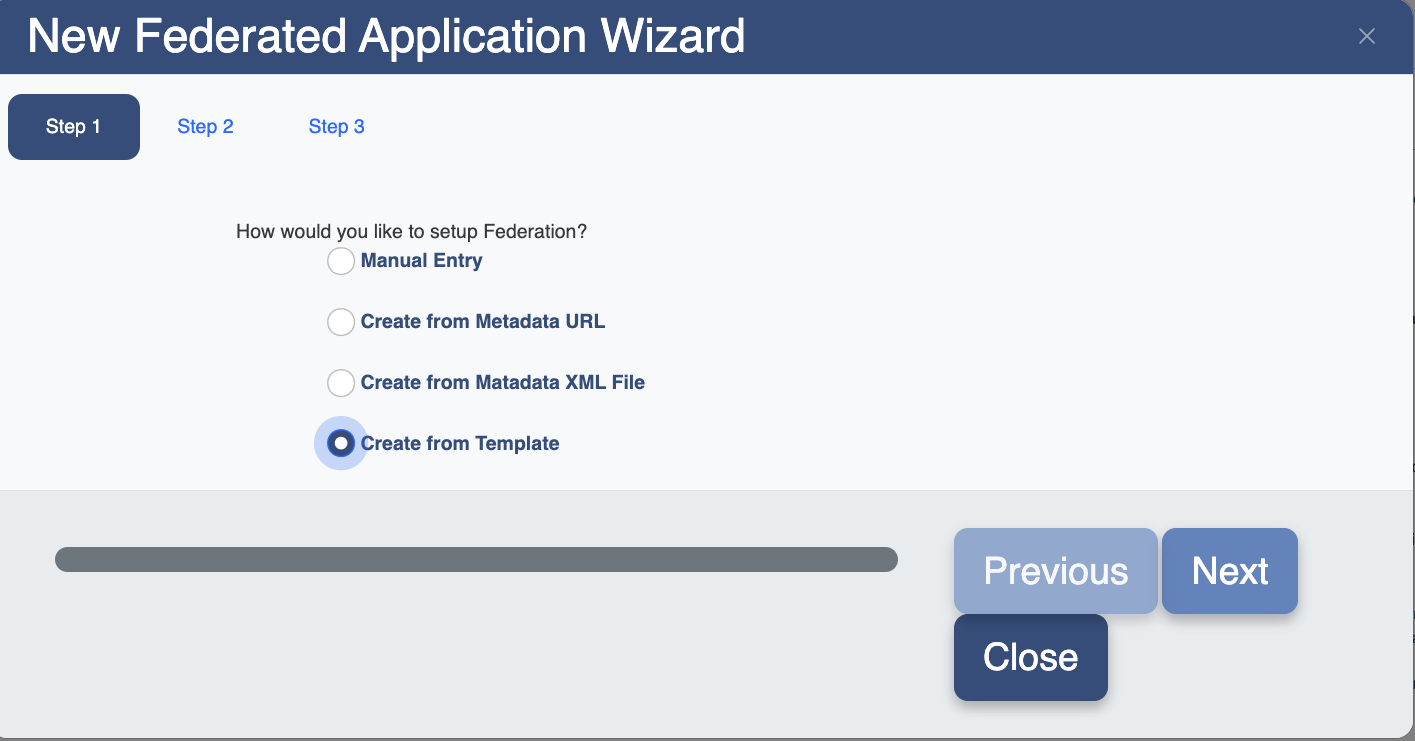

2. In the New Federated Application Wizard, in step1 , choose “Create from Template” and click “Next”

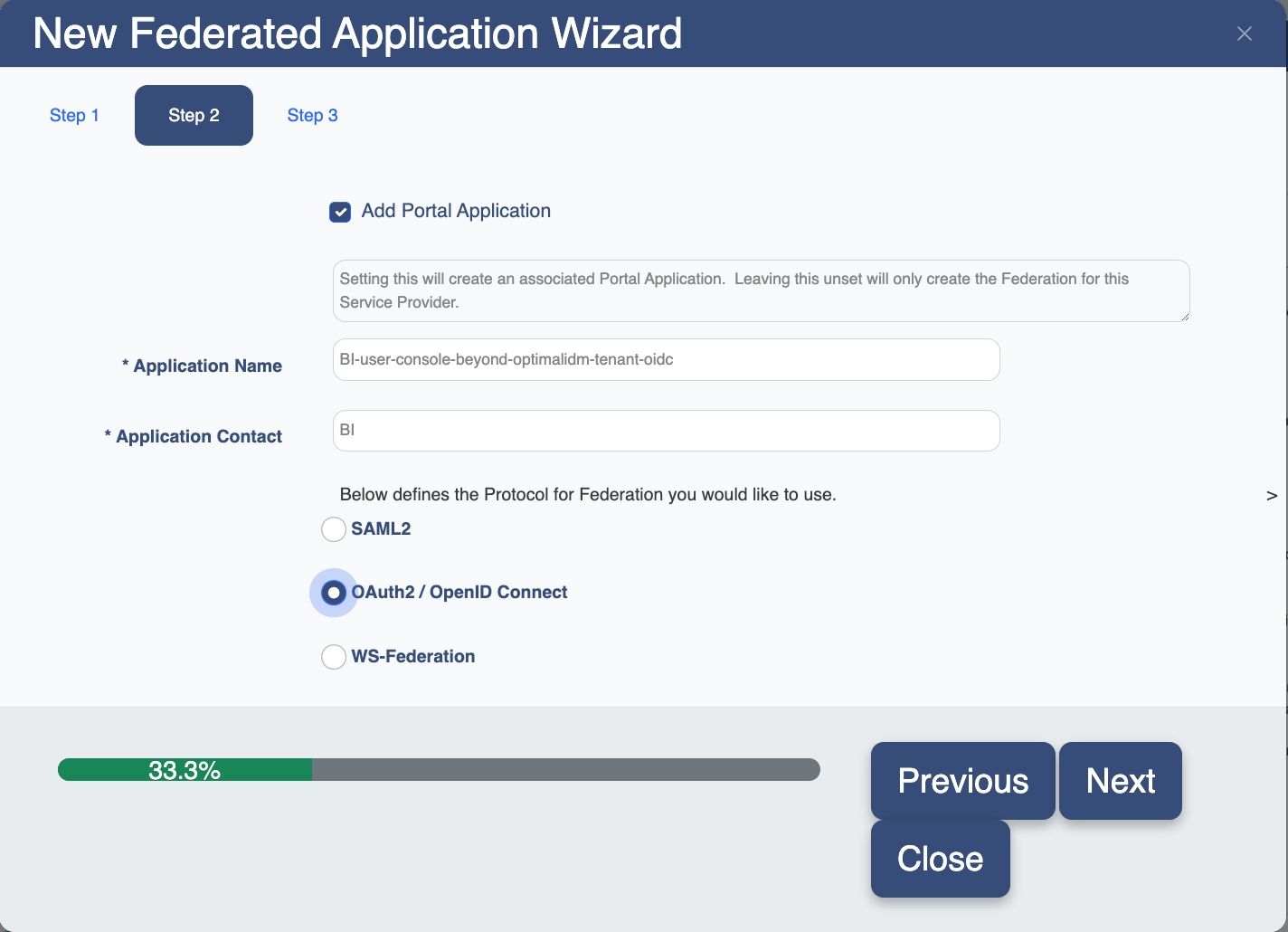

3. In “Step 2” of New Federated Application Wizard, check “Add Portal Application”. Enter a name for the Application Name and Application Contact. Choose Oauth2 /OpenID Connect and click “Next”

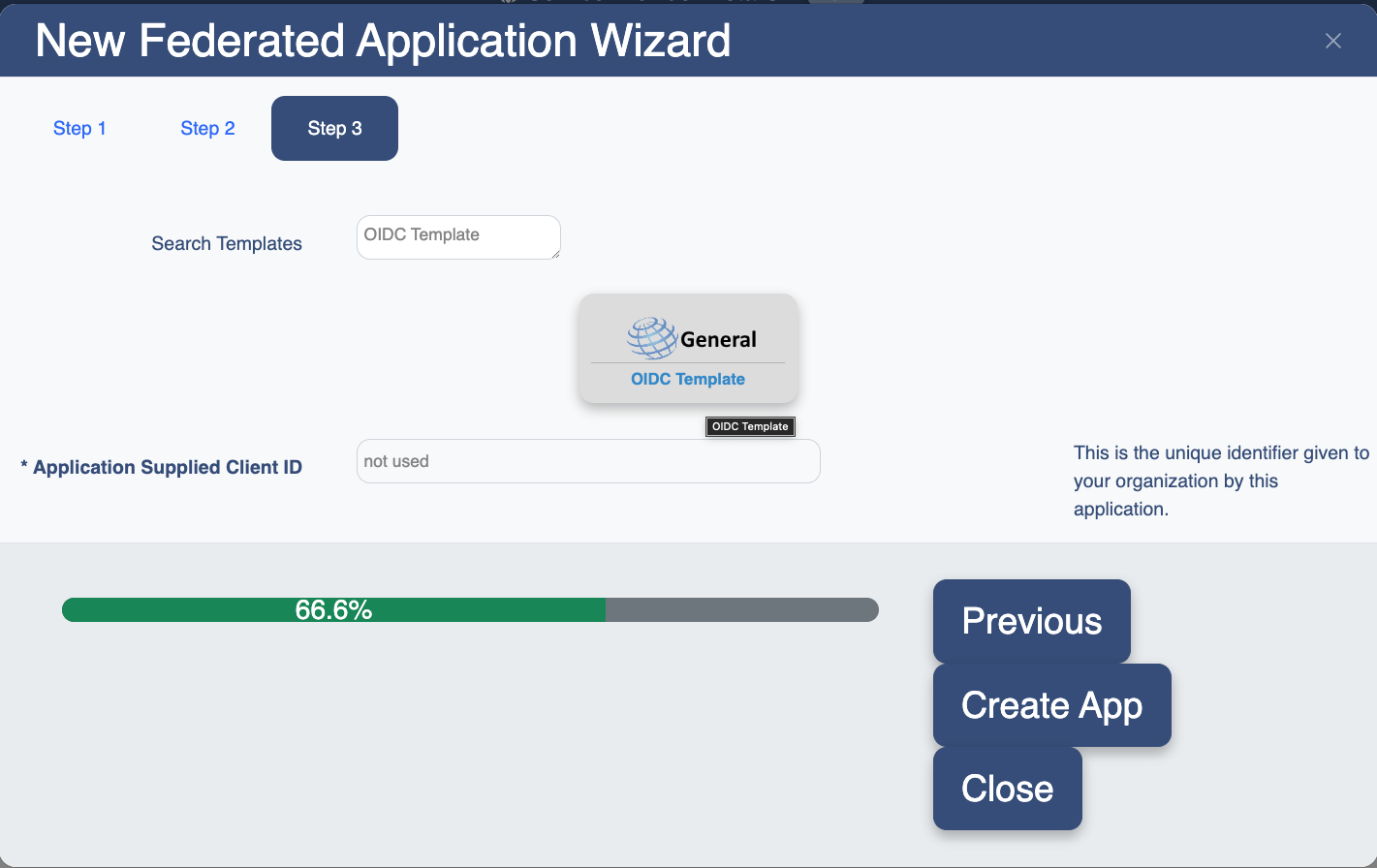

4. In Step 3” of New Federated Application Wizard, in search Template, type “OIDC Template”. From the search results, choose “General OIDC Template” and click “Create App”

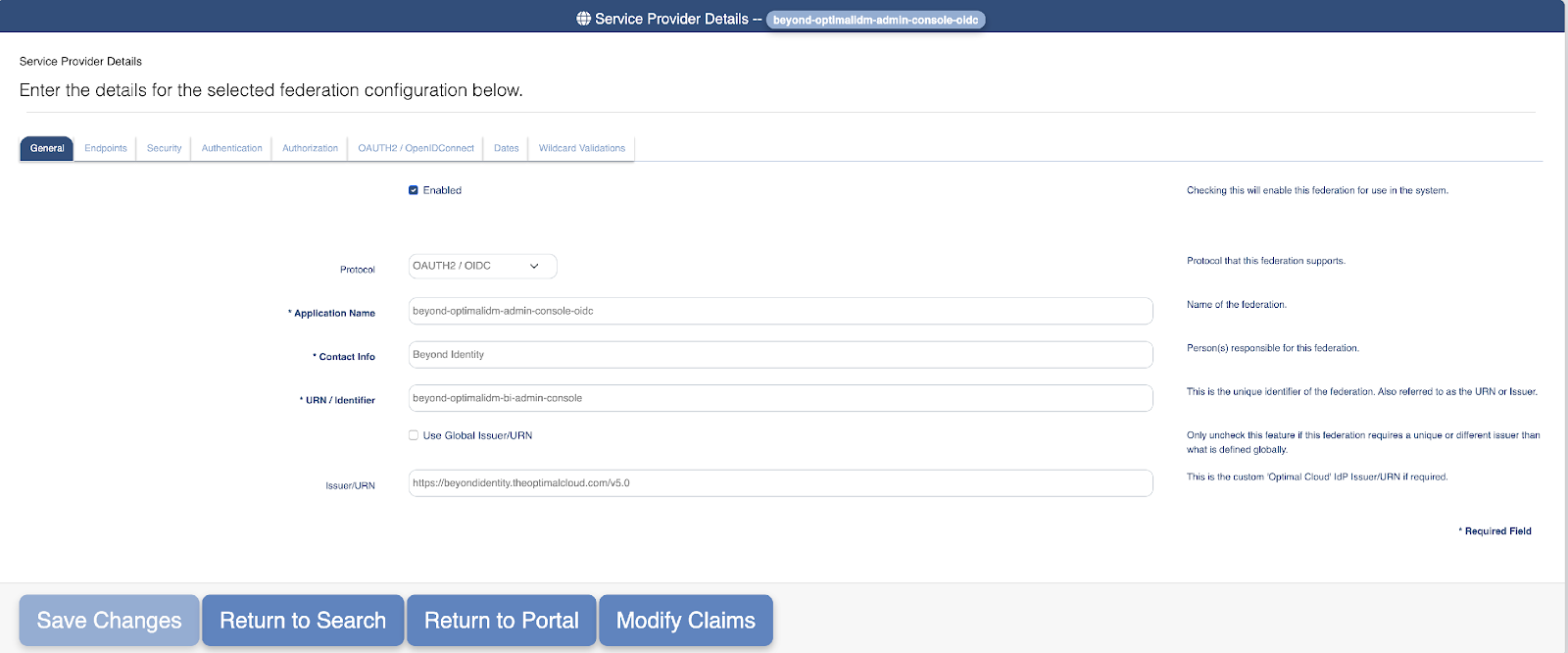

5. In service provider details screen, under “General” Tab

• Check “Enabled”
• Choose OAUTH2/OIDC for protocol
• Enter an Application Name  and a Contact Info
• In URN/Identifier, type in a value for the client ID, for example “beyond-optimalidm-bi-admin-console”. This value will be used in BI admin console setting up BI admin console OIDC SSO

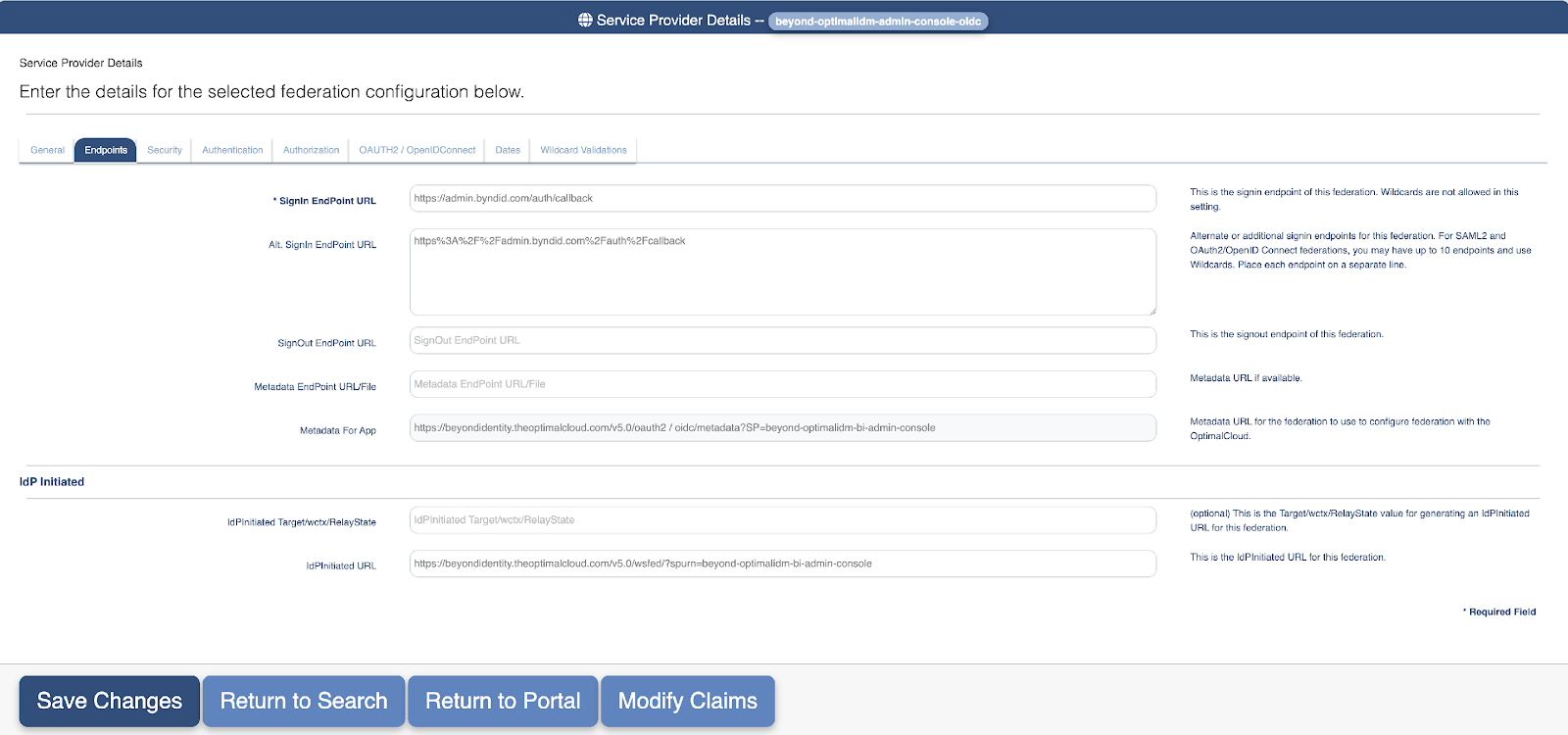

6. In service provider details screen, under “Endpoints” Tab

• Enter https://admin.byndid.com/auth/callback as Signin Endpoint URL
• Leave the other values to default

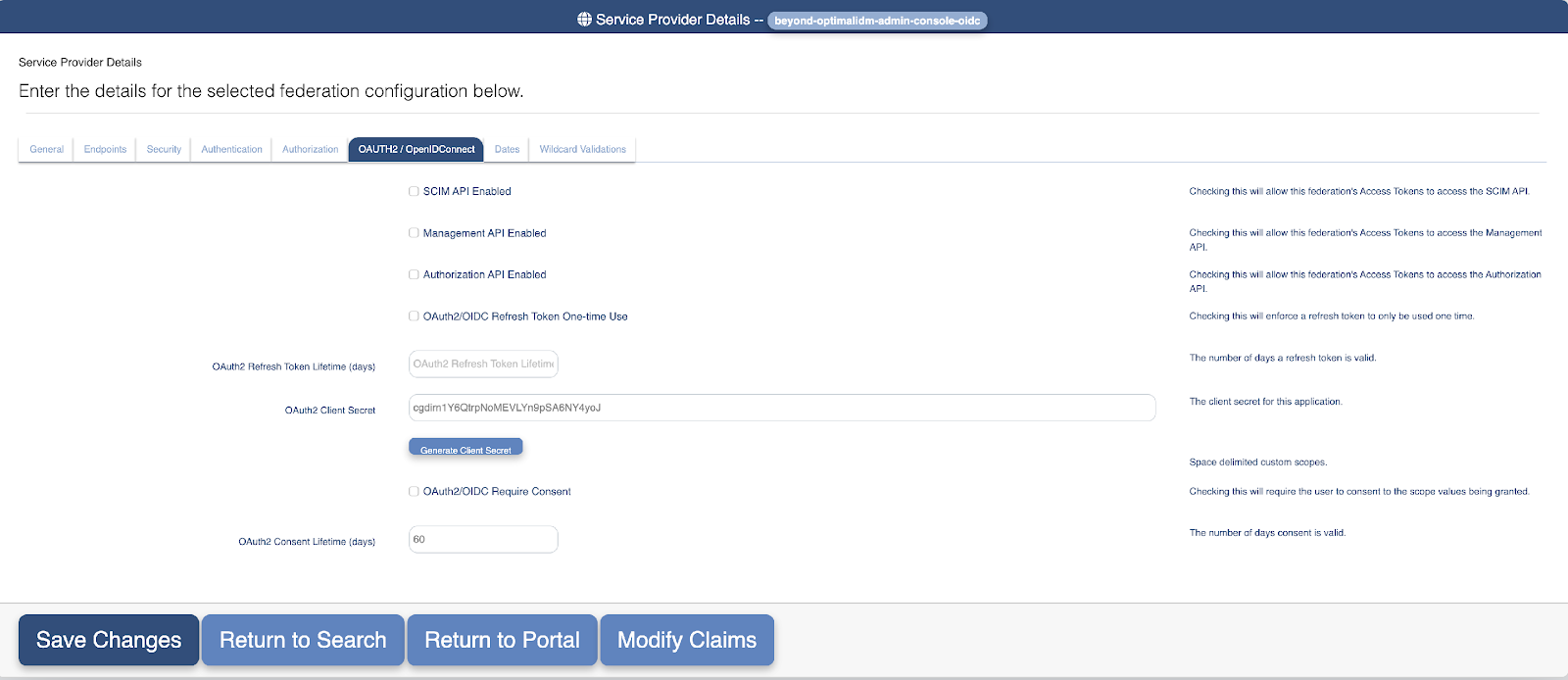

7. In service provider details screen, under “OAUTH2/OpenIDConnect” Tab

• Click “Generate Client Secret”
• Note down the value of client secret. This is required in setting up BI admin console SSO in BI admin console
• Click “Save Changes”



Step 3: Setup Admin Console Access

1. Provide “Client ID” and “Client Secret” assigned to Admin Console Application in steps 1.e and 1.g to Beyond Identity SE. The Beyond Identity team will collect and populate those values using BI admin console
2. After these values are provisioned, login and confirm that admin has access to Beyond Identity Admin Console.



Step 4: Setup Beyond Identity User Console Application in OptimalIDM

1. Repeat similar steps as outlined in “Step 2: Setup Beyond Identity Admin Console Application in OptimalIDM”
2. In service provider details screen, under “Endpoints” Tab

• Enter https://user.byndid.com/auth-user/?org_id=BI_TENANT_ID as Signin Endpoint URL

3. Note down the client ID and client secret



Step 5: Setup Beyond Identity User Portal Authentication

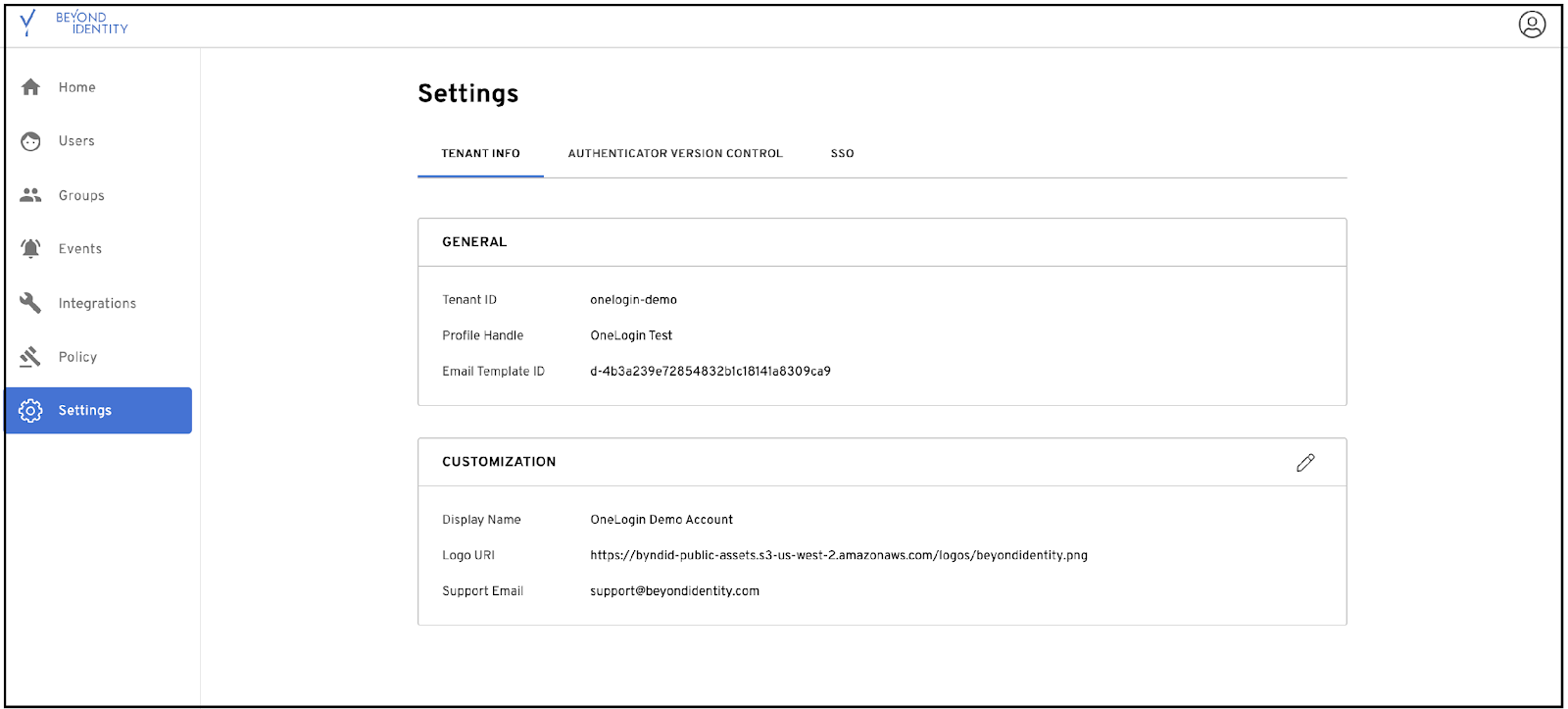

1. Once logged into Beyond Identity Admin Console, click on Settings.





2. Click on “SSO” tab > User Console SSO Integration > Add OIDC SSO

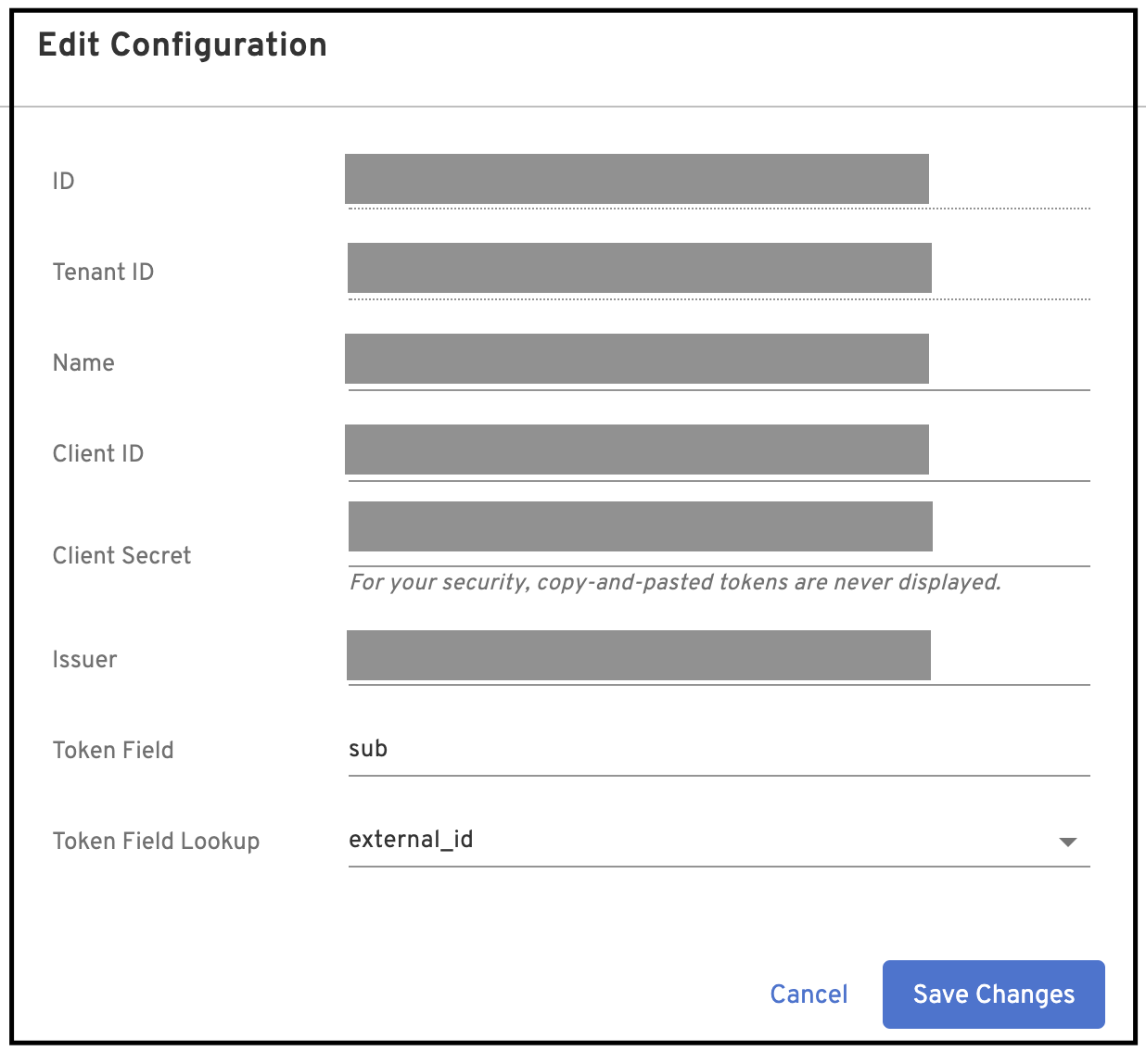

3. Update Name, Client Id, Client Secret (from 4.c)
4. Enter issuer as “https://[your_tenant].theoptimalcloud.com/v5.0”
5. Enter Token Field as “sub” and select Token Field Lookup as “external_id”.
6. Click “Save Changes”.



Step 6: Set up SCIM in OptimalIDM to BI Tenant

• The SCIM setup will scim members of a specific group, for example BI_users
• The steps required in order are
  1. Create a condition of type MEMBER_OF that checks if the user is a member of Bi_users group
  2. Create an authorization rule and associate condition created in step a
  3. Create a provisioning destination and associate authorization rule created in step b

Step 6.1: Create MEMBER_OF condition

1. Login to your optimalIDM tenant as a tenant admin. Click on “Condition Manager”

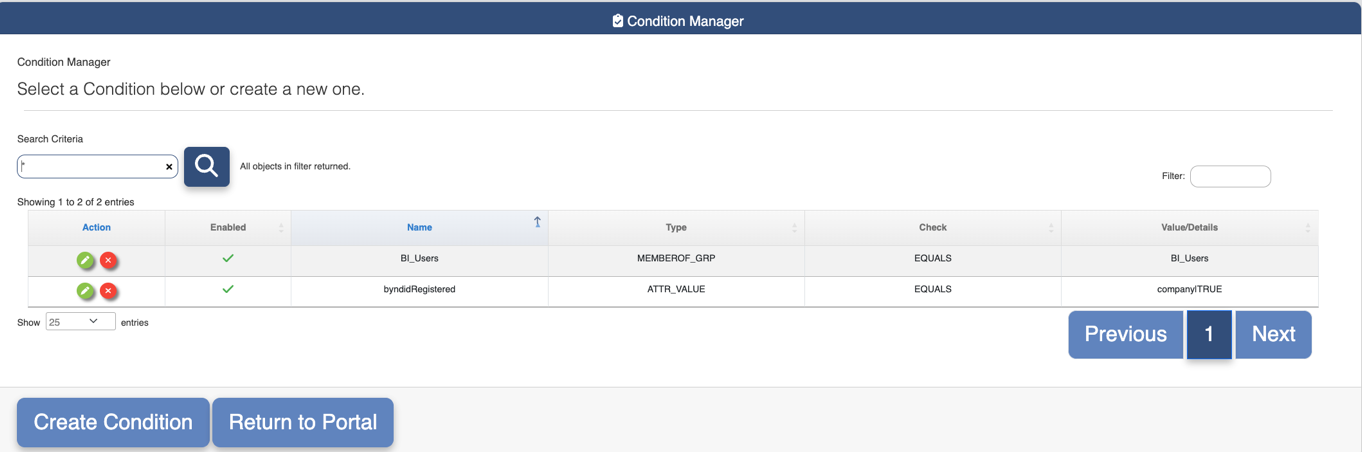

2. In the “Condition Manager” screen, click “Create Condition”

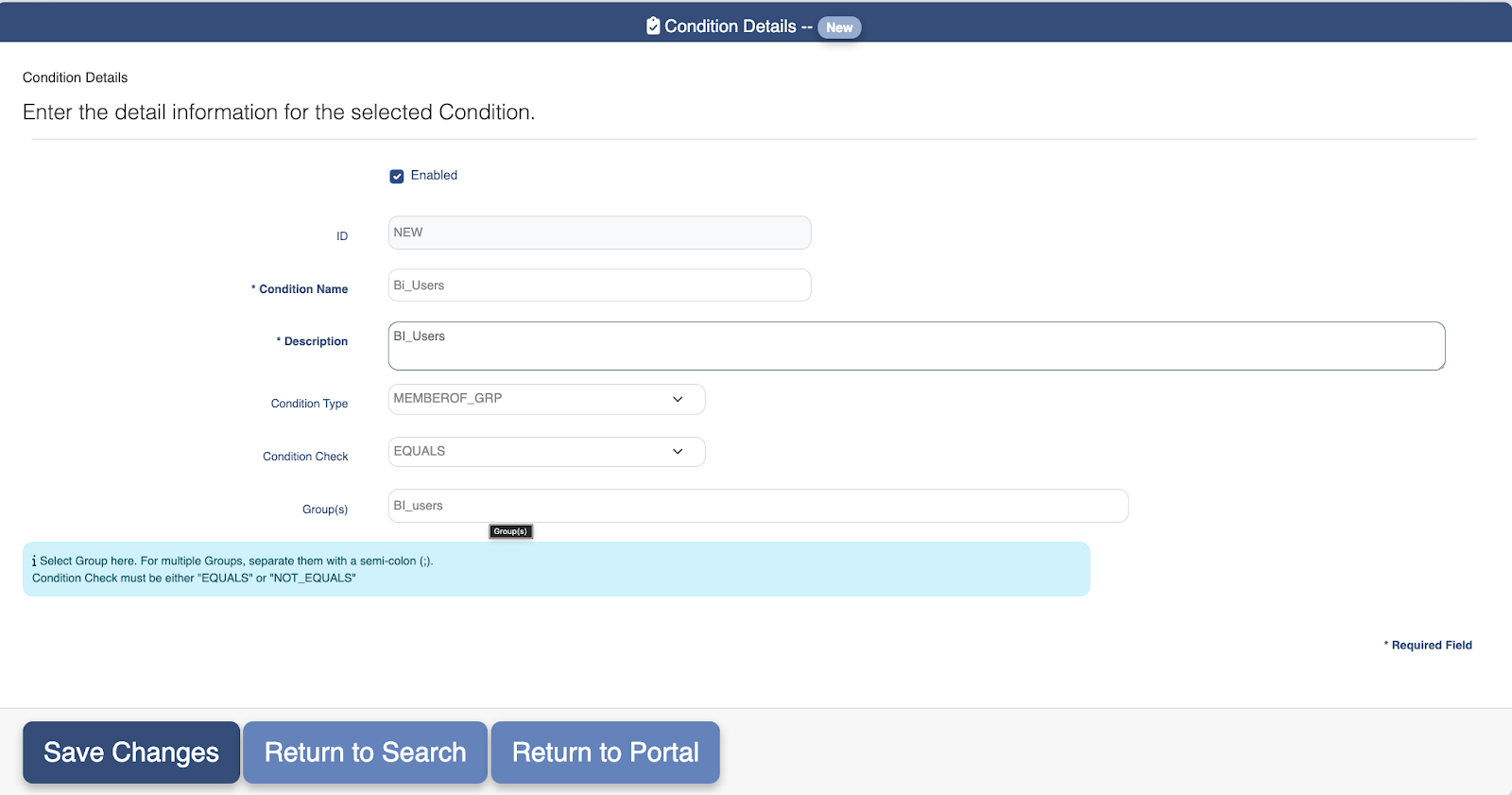

3. In the “Condition Details” screen

• Type in a name and description for the condition
• Choose MEMBER_OF_GRP in condition type drop down
• Choose Equals in condition check drop down
• Type in “Bi_users”  in Group(s) text
• Click “Save changes”







Step 6.2: Create Authorization Rule

1. Login to your optimalIDM tenant as a tenant admin. Click on “Authorization Rule Manager”

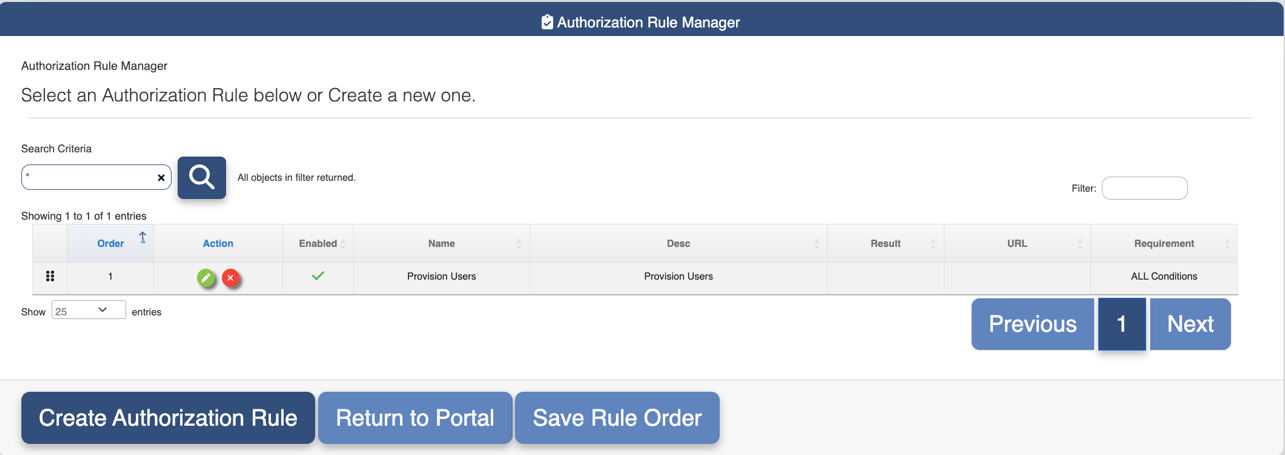

2. In “Authorization Rule Manager” screen, click “Create Authorization rule”

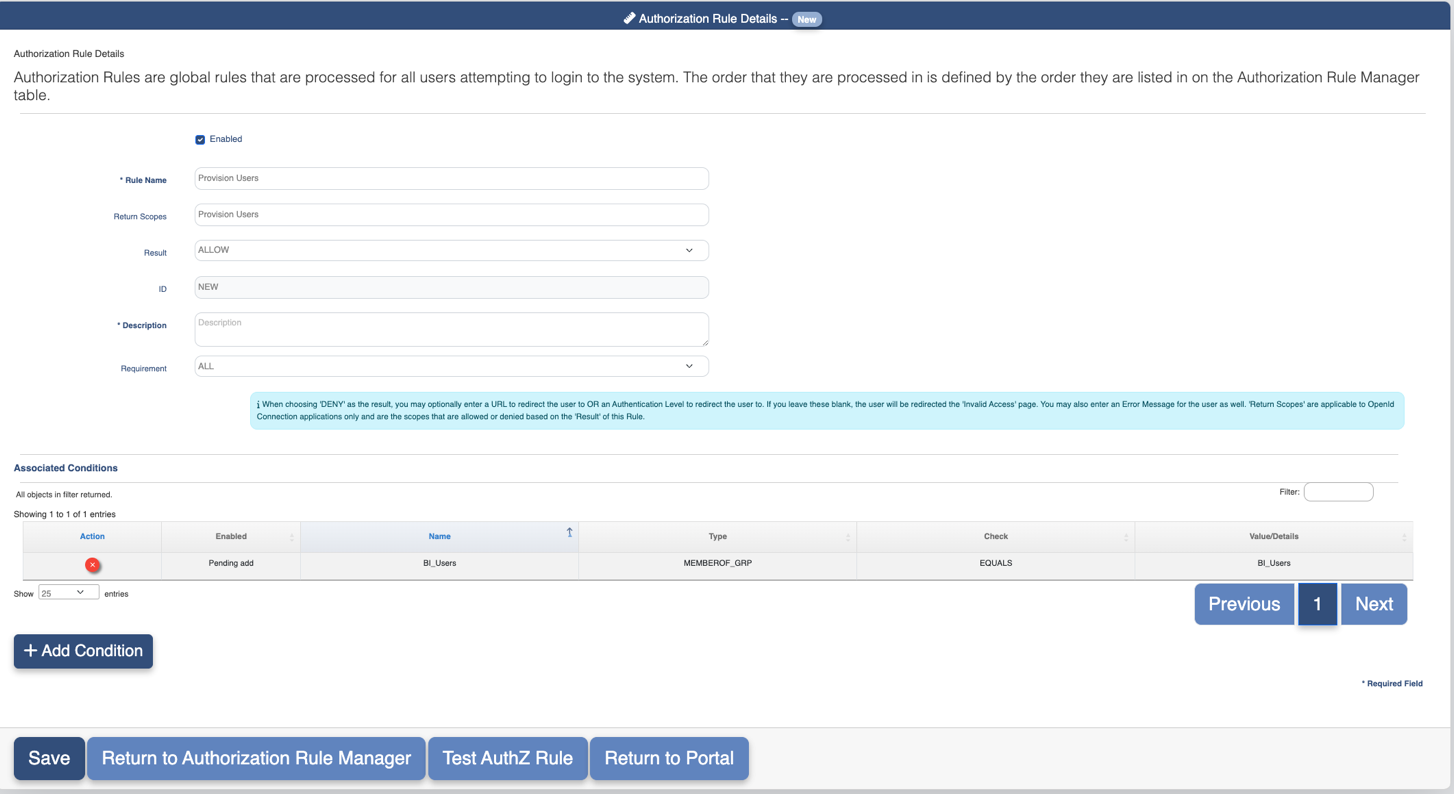

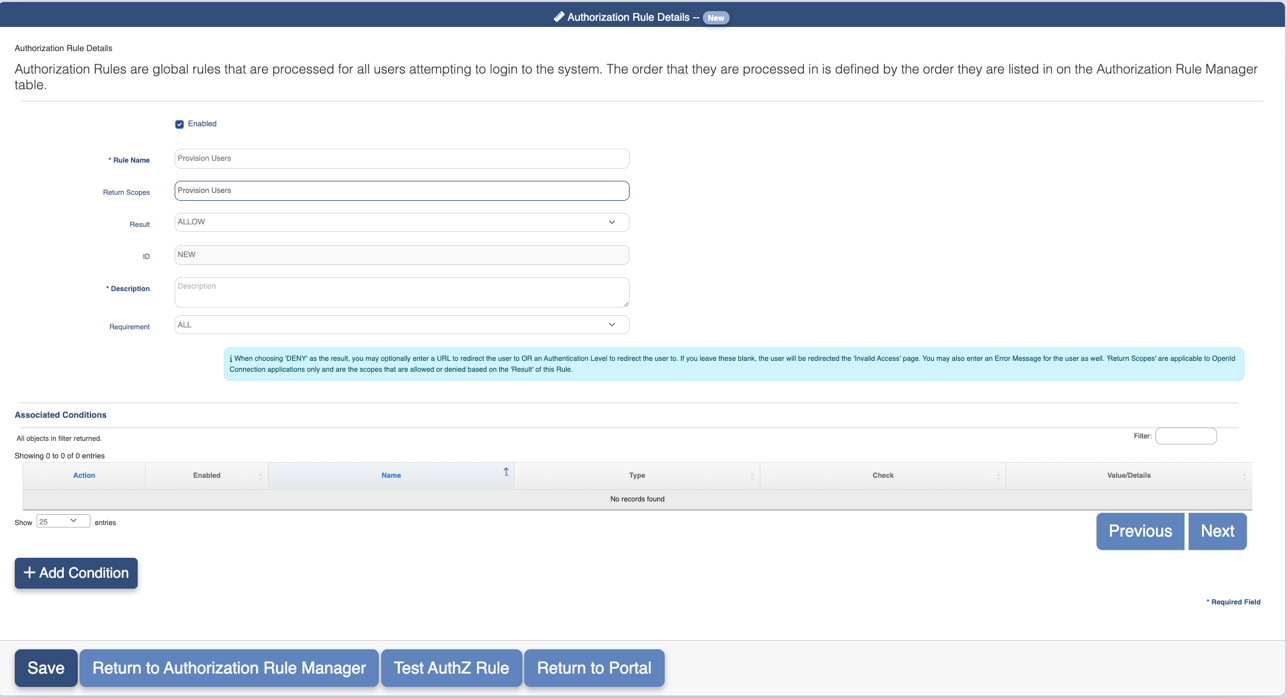

3. In “Authorization Rule Details” screen

• Type in a Rule name and description
• Leave other fields with the defaults
• Click “Add Condition”

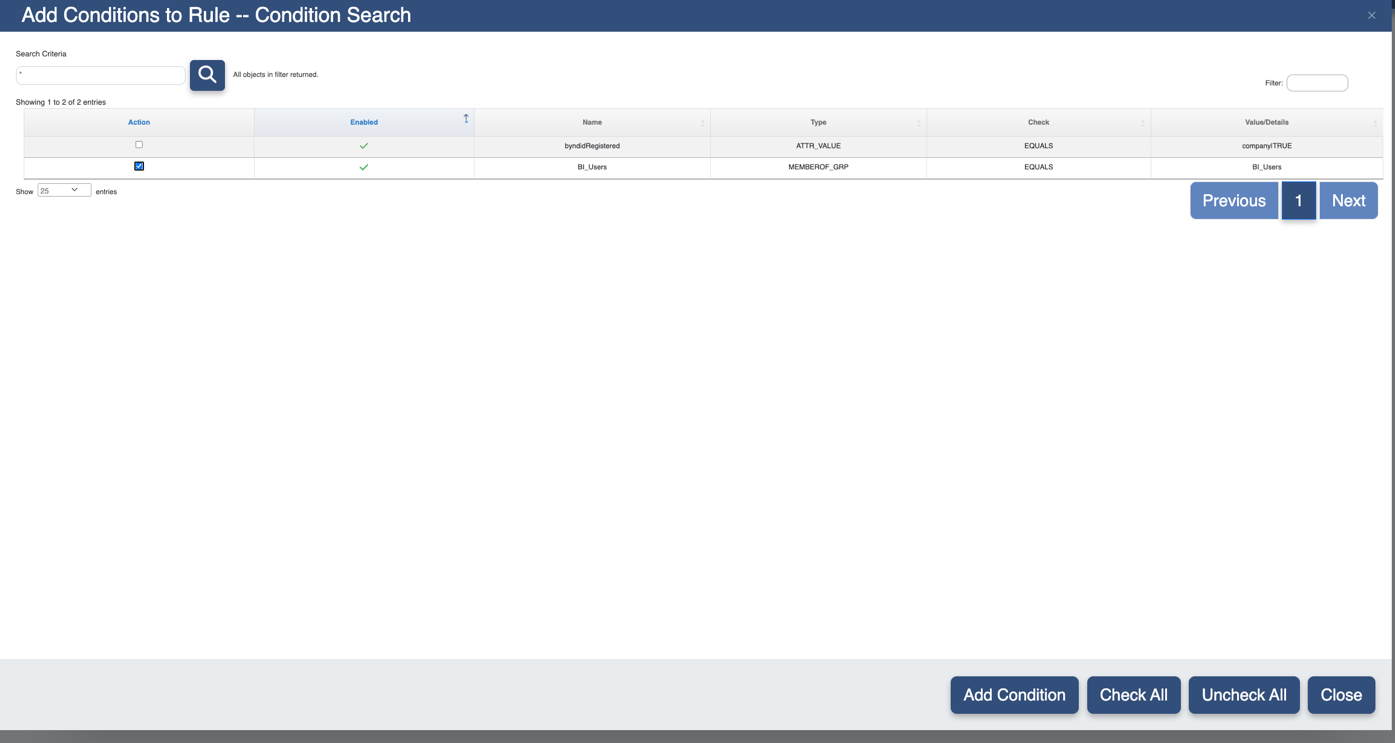

4. In “Add Conditions to Rule – Condition Search” screen

• Select the condition created in 6.1.c
• Click “close”





In next screen, click “Save”



Step 6.3: Create provisioning destination

1. Login to your optimalIDM tenant as a tenant admin. Click on “Provisioning Manager”

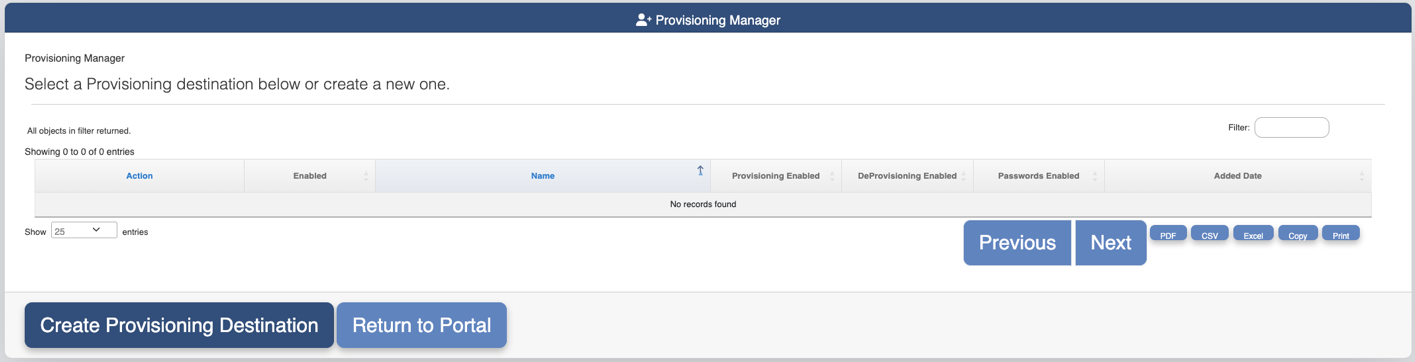

2. Click “Create Provisioning Destination” in “Provisioning Manager” screen

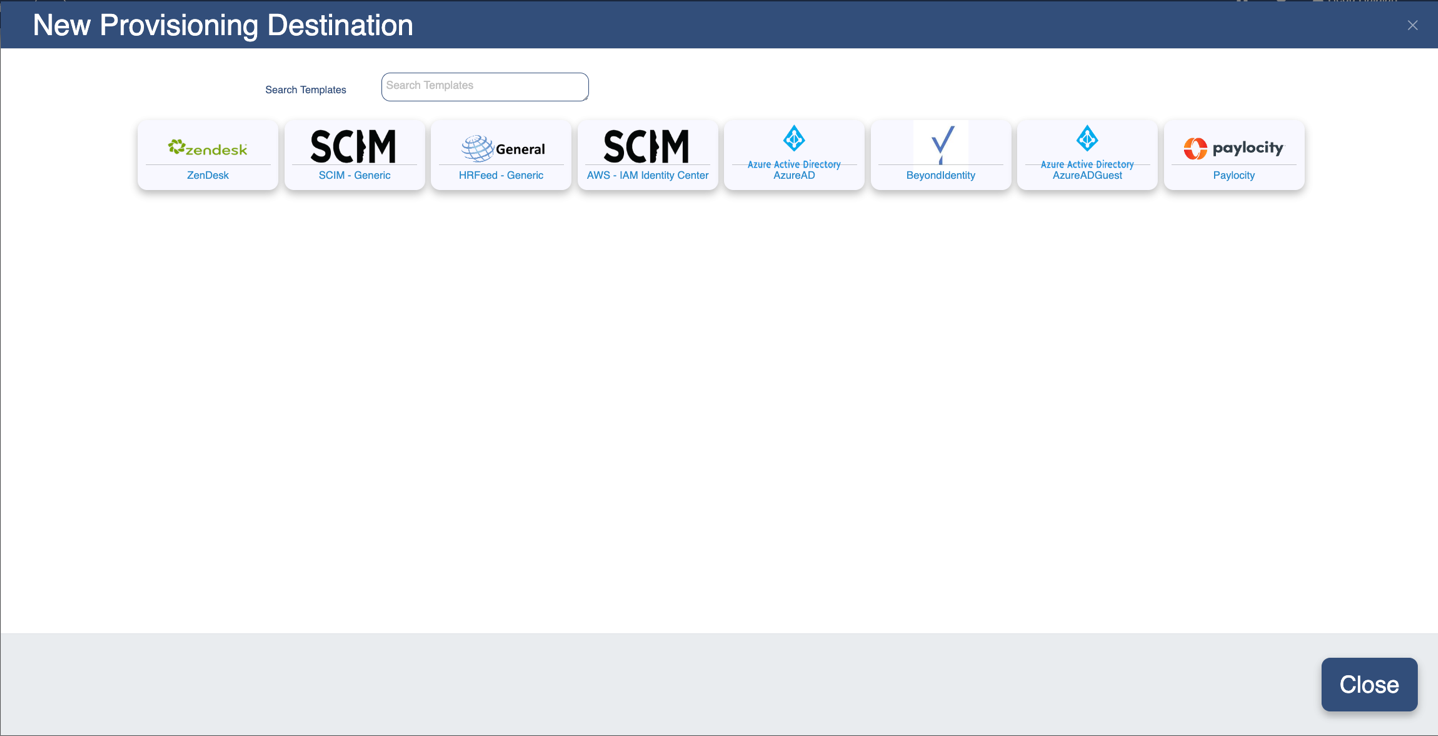

3. Click “Beyond Identity” in “New Provisioning Destination” screen

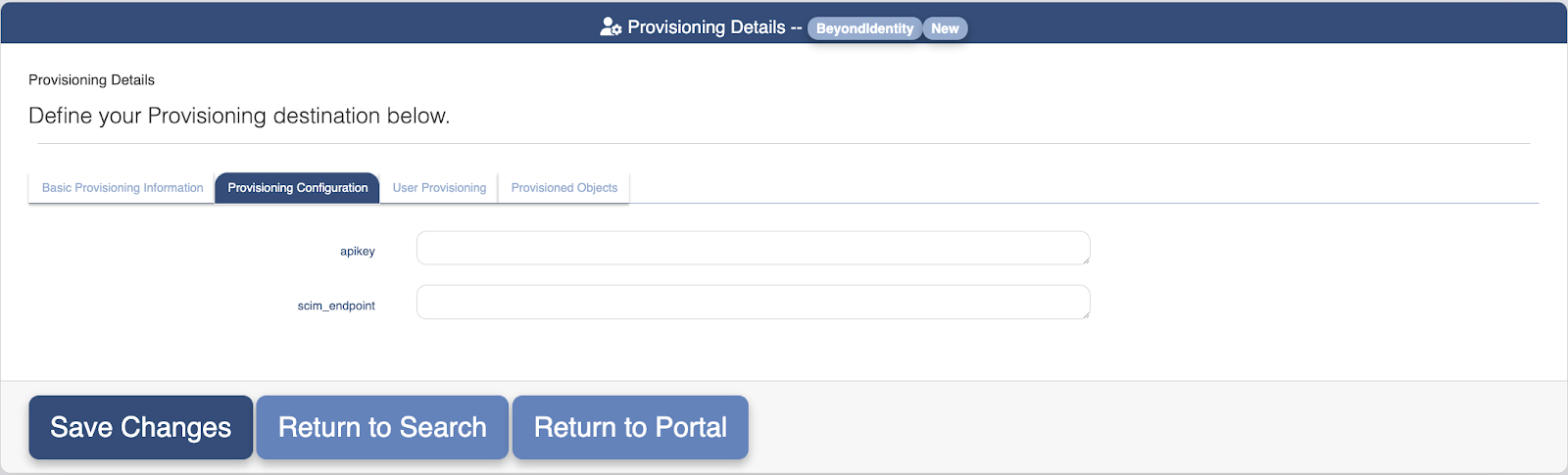

4. In “Provisioning Details” screen, under “Provisioning Configuration” tab

• Type in the tenant api token provided by BI SME as  the apikey field
• Type in https://api.byndid.com/scim/v2/ as the scim_endpoint

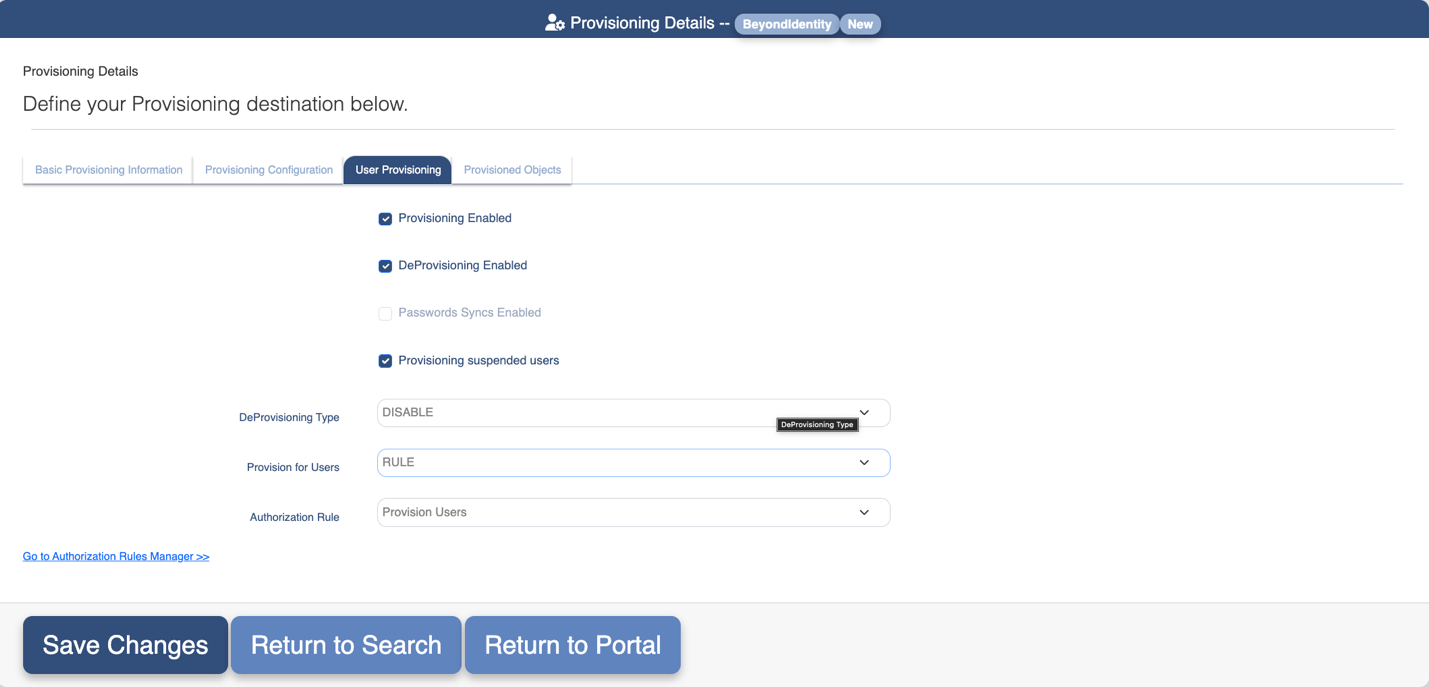

5. In “Provisioning Details” screen, under “User Provisioning” tab

• Check “Provisioning Enabled”
• Check “Deprovisioning Enabled”
• Uncheck “Password Syncs Enabled”
• Check “Provisioning Suspended Users”
• Choose “Disable” in “Deprovisioning Type” drop down
• Choose the authorization rule created in step 6.2 in “Authorization Rule” drop down
• Click “Save Changes”



Step 6.4: Verify SCIM

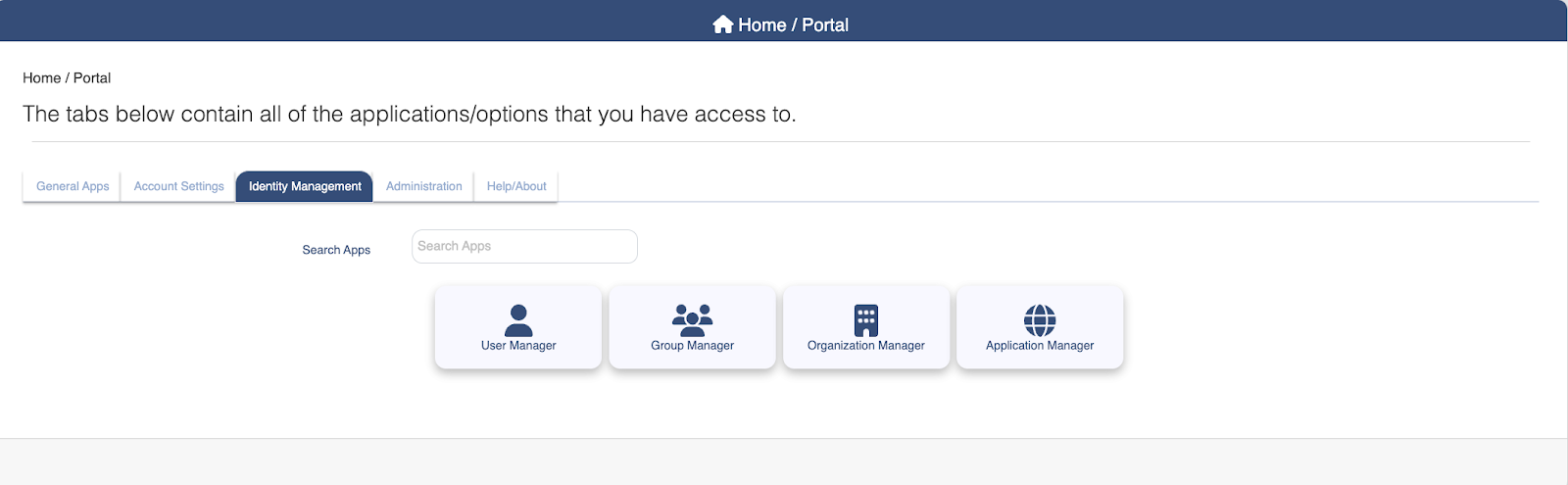

• Create a user in OptimalIDM using “User Manager”
• Create BI_users group in OptimalIDM using “Group Manager”
• Add the user as a member of BI_users group using “Group Manager”
• Verify in BI tenant the SCIMmed user
